I-3K/12K Elukiweyo Qeda Roll Egoqwe Ipayipi Le-Carbon Fiber

I-3K/12K Roll Egoqwe Ipayipi Le-Carbon Fiber

Ngomsebenzi we-lightweighting kanye nezinga lamandla aphezulu. Leli shubhu le-carbon fibre likhiqizwa kusetshenziswa ubuchwepheshe obuqondile bokujikajika, ukufeza isilinganiso esimangalisayo samandla nesisindo. Kuyinketho ekahle yokuthuthukisa ukusebenza kwemishini kanye nokushayela ukwakheka okusha.

Buza Manje Umkhiqizo Olandelayo

Incazelo Yomkhiqizo

Isebenzisa i-3K noma i-12K elukiwe ye-carbon fabric prepreg, ikhiqizwa ngenqubo enembile yokugoqa. Indawo engaphezulu iveza ukuthungwa kwe-twill yakudala noma i-plain weave, ehlanganisa amandla aphezulu nokukhanga kobuhle. Ilungele izimboni, i-aerospace kanye nezinkundla zemishini yezemidlalo lapho ukuzwela kwesisindo kanye nokuqina okuphezulu kuyadingeka.

Izinzuzo Zenqubo

● Idizayini enamandla amakhulu : Ngokulungiselela izakhiwo zokumakhenikha ngokujika kwama-engeli amaningi (okufana ne-axial + circumferential), amandla okugoqa akhuliswe ngaphezu kuka-40%.

● I-Lightweighting : Ngamandla afanayo, isisindo si-1/5 kuphela samapayipi ensimbi kanye ne-1/2 yaleso samapayipi e-aluminium.

● Ukuvumelana okuphezulu : Inqubo yokujika ezenzakalelayo iqinisekisa ukuthi ukubekezelela usayizi weqoqo ngalinye kungu-≤ ±0.1mm.

● Aesthetics : 3K/12K indawo yokuthungwa elukiwe, asikho isidingo sesembozo esengeziwe noma isendlalelo sokuhlobisa.

Imingcele Yezobuchwepheshe

Izinto	Amanani
Okubalulekile	3K/12K ikhabhoni elukiwe ngendwangu yefayibha + epoxy resin (iresin eshibhile enezinga eliphezulu ngokwezifiso)
Inqubo	Ukugoqa, ukunqwabelana kwe-engeli yezendlalelo eziningi
I-Fiber Orientation	Yenza ngokwezifiso (okufana no-±45°, 0°/90°, njll.)
Ukuminyana	1.5-1.6 g/cm³ (30% ilula kune-aluminium)
Amandla Okuqina	≥800 MPa (3K), ≥1000 MPa (12K)
I-Tensile Modulus	70-120 GPA
Ukwelashwa Okungaphezulu	I-glossy/matte coating, isivikelo se-UV (uma uthanda)
Izinga lokushisa lokusebenza	-50℃ ~ +120℃ (inguqulo evamile ye-epoxy resin)
Umbala	Umbala omnyama (ojwayelekile), owenziwe ngezifiso

Izimo zohlelo lokusebenza

● Imishini yezimboni: izixhumanisi zengalo eziyimishini, ama-automated guide rails, amalunga erobhothi.

● I-Aerospace: Ukusekelwa kwe-Drone fuselage, i-satellite antenna pole.

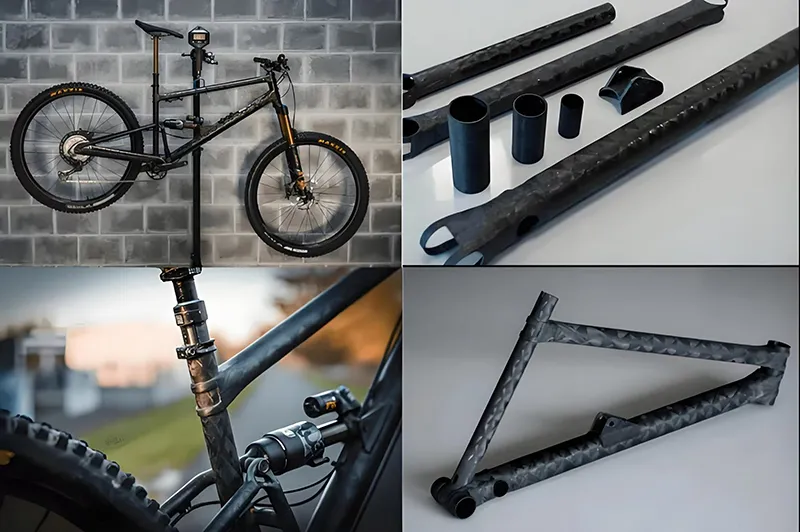

● Imishini yezemidlalo: uhlaka lwebhayisikili, izigwedlo zokugwedla, iklabhu yegalofu.

● Ukulungiswa kwemoto: Ishafu yokudlulisa engasindi, amashubhu okuqinisa i-chassis.

I-3K/12K Elukiweyo Qeda Roll Egoqwe Ipayipi Le-Carbon Fiber

I-Q&A

Q1: Uyini umehluko phakathi kwe-3K ne-12K carbon fiber?

I-3K: Inqwaba eyodwa equkethe imicu ye-carbon engu-3000, enokuthungwa okuhle, ifanele izidingo eziphezulu zendawo; I-12K: Inqwaba eyodwa ye-carbon fibers engu-12000, enezindleko eziphansi namandla aphezulu.

Q2: Ingabe ukwenza ngokwezifiso osayizi abangajwayelekile kuyasekelwa?

Ukusekela ukwenza ngokwezifiso ubukhulu bangaphakathi (10 - 200mm), ukujiya kodonga (1 - 10mm), nobude (≤ 6m). Kudingeka imidwebo ethile.

Q3: Indlela yokuxhuma noma ukucubungula?

Ingabhobozwa futhi isikwe. Kunconywa ukusebenzisa amathuluzi ahlanganiswe nedayimane. Indlela yokuxhuma inconywa ukuba ibe yi-adhesive (i-epoxy glue) noma ibhande lensimbi.

I-Q4: Ikwazi ukumelana nokugqwala?

Imelana ne-asidi ne-alkali kanye nokugqwala kwesifutho sikasawoti, kodwa ungqimba olungaphezulu lokuvikela kudingeka lwengezwe lapho luchayeke emisebeni ye-ultraviolet isikhathi eside.

Ukupakisha kanye Nokulethwa

Ukupakisha: Igwebu elingangenwa yi-Shockproof + ishubhu lephepha eliqinile, elinamakepisi okuvikela kuzo zombili iziphetho.

Isikhathi sokulethwa: usayizi ojwayelekile ojwayelekile - izinsuku eziyi-7 kuye kweziyi-15; Usayizi ngokwezifiso - 3 ukuze 4 amaviki. Ngaphambi kokukhiqiza, izinsuku ezithile zokulethwa zizohlelwa ngokusekelwe enanini le-oda, uhlobo lomkhiqizo kanye nesimo sokukhiqiza.
